1. Max depth 600m
2. Diameter 75mm-600mm
3. Works with BW-200 Mud pump.

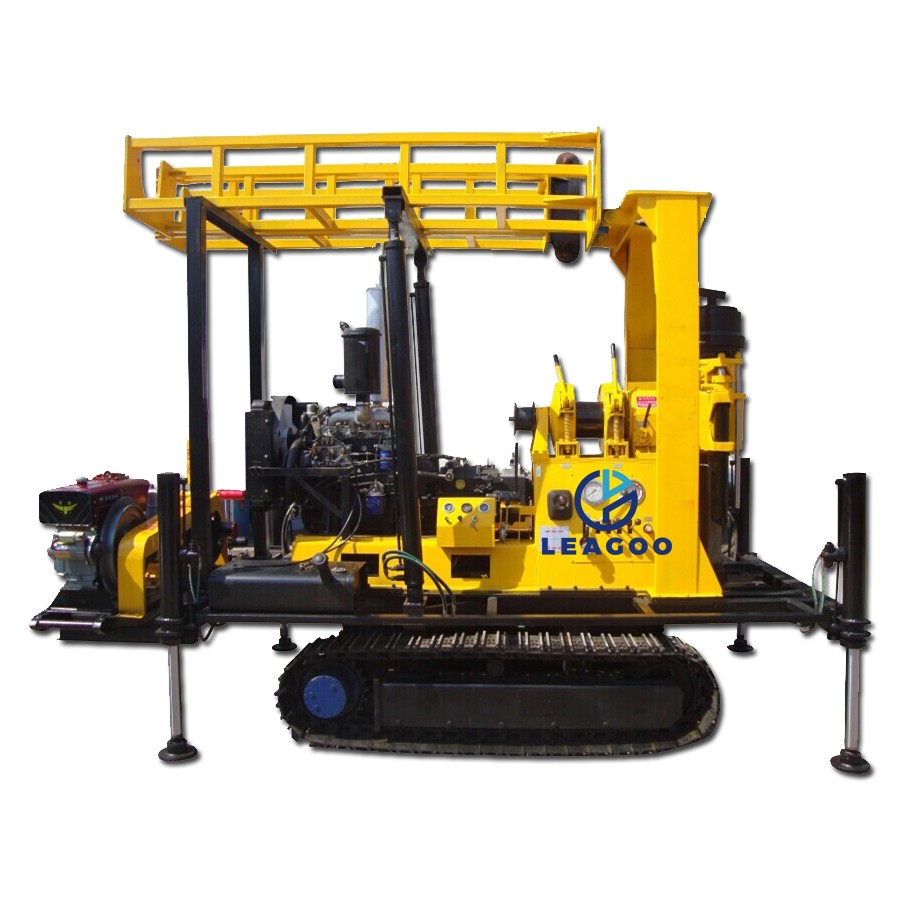

4. Crawler mounted type.
5. Drilling in soil, sand , gravel, soft and hard rocks.
6. Multi-functional, for water well and coring purpose.
I. APPLICATION
1. It is a high-speed drilling rig, suitable for geotechnical exploration, water well, soil sample projects.
2. Alloy bit, diamond bit and tricone bit can be selected for drilling according to the different bottom layers.
3. Diesel engine as power, no need to use electricity, convenient for outdoor drilling.
4. BW-200 mud pump, with large water flushing rate, supply powerfully energy for working.
II. TECHNICAL PARAMETER
1. Main Machine | |
Max. Drilling Depth | 600m |
Diameter of drill pipe | Φ42,Φ50,Φ60,Φ76 |
Angle of vertical spindle | 90°~65° |
Drilling capability | |
Φ75mm drill diameter | 600m depth |
Φ108mm drill diameter | 500m depth |
Φ127mm drill diameter | 400m depth |
Φ159mm drill diameter | 300m depth |
Φ219mm drill diameter | 210m depth |
Φ273mm drill diameter | 150m depth |
Φ500mm drill diameter | 80m depth |
2. Vertical Spindle | |
Rotation speed | Forward: 30-1050r/min |
Reverse: 29-137r/min | |
Spindle stroke | 560mm |
Spindle bore | 96mm |
Hoisting capability | 6000kg |
Max. Torque | 3800N.m |
3. Main hoist | |
Lifting speed of single wire | 0.5-1.9m/s |
Diameter of wire rope | 12.5mm |
Carrying capacity of single rope | 4000kg |
Diameter of winding drum | 300mm |
Volume of winding drum | 50m |
Lifting capability of single wire | 3000kg |
4. Mud pump | |
Horizontal triplex mud pump | BW-200II |
Displacement | 200L/min |
Working pressure | 50kgf/cm² @ 5MPa |
Diameter of water inlet hose | 65mm |
Diameter of water outlet hose | 38mm |
5.Power supply | |
Diesel engine | Model 4100,38kw(50PS) |
Electrical motor | Y180M-4B35,22kw |
7. Weight and Dimension | |
Weight | 3500kg |
Dimension | 3700×1850×3200mm |
