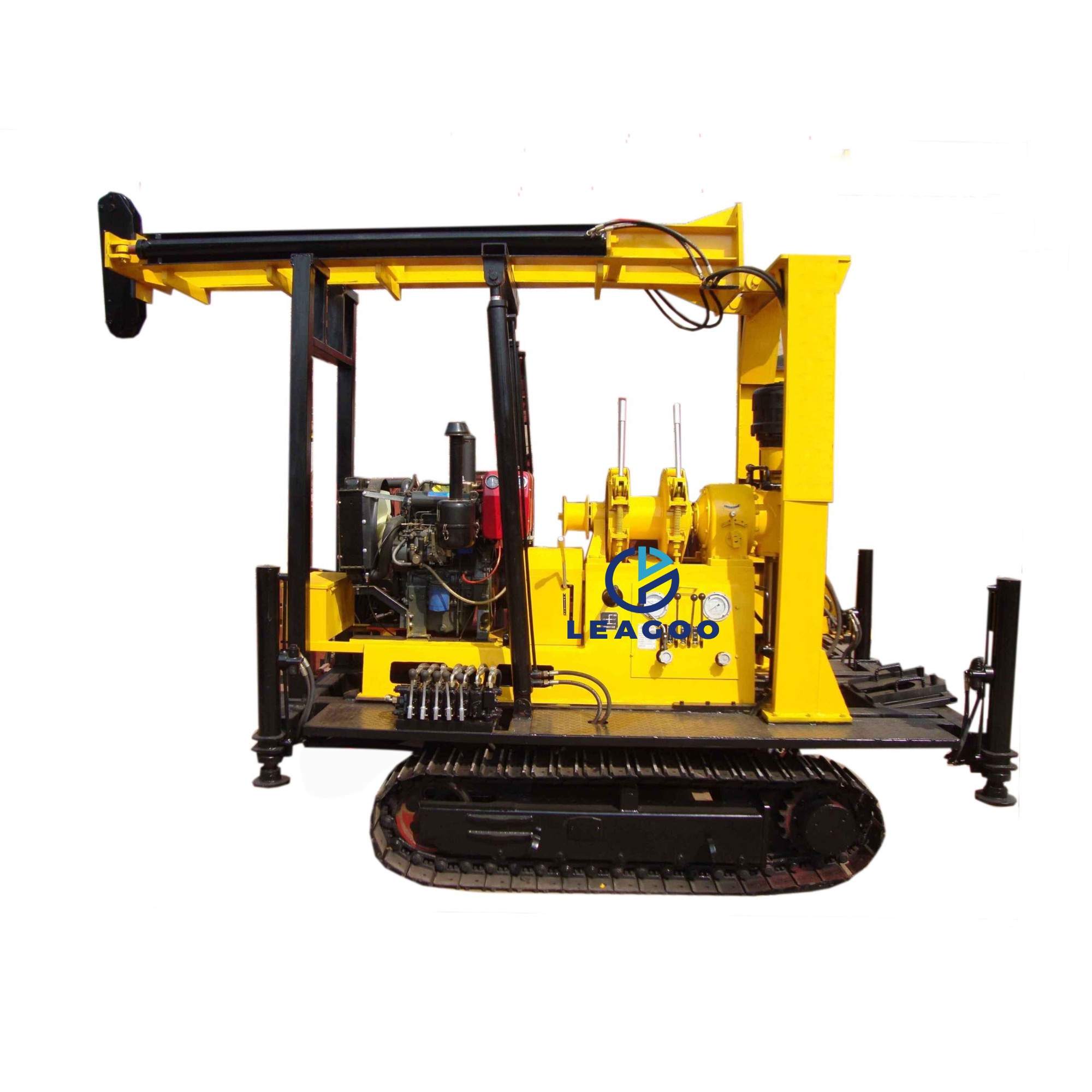

1. Max depth 400m
2. Diameter 75mm-600mm
3. Works with BW-200 Mud pump.
4. Crawler mounted type.
5. Drilling in soil, sand , gravel, soft and hard rocks.
6. Multi-functional, for water well and coring purpose.
I. APPLICATION
1. It is a high-speed drilling rig, suitable for geotechnical exploration, water well, soil sample projects.
2. Alloy bit, diamond bit and tricone bit can be selected for drilling according to the different bottom layers.
3. Diesel engine as power, no need to use electricity, convenient for outdoor drilling.
4. BW-200 mud pump, with large water flushing rate, supply powerfully energy for working.
II. TECHNICAL PARAMETER
1. Main Parameters | |||
Max. Drilling Depth | 400m | ||
Diameter range | 600mm-75mm | ||
| Diameter of drill rod | Φ50,Φ60,Φ76 | ||
2. Vertical Spindle | |||
Rotation speed | Forward 8 grades | 50-1150r/min | |
Reverse 2 grades | 29-137r/min | ||
Spindle stroke | 600mm | ||
Spindle bore | 62mm | ||
Hoisting capability | 6000kg | ||
Max. Torque | 2800N.m | ||
3. Main hoist | |||
Lifting speed of single wire | 0.5-1.9m/s | ||
Diameter of wire rope | 14.0mm | ||
Carry capacity of single wire | 4000kg | ||
Diameter of winding drum | 300mm | ||
Volume of winding drum | 50m | ||
Lifting capability of single wire | 3000kg | ||
4.Auxiliary Hoist | |||
Winding drum | 140mm | ||
Diameter of steel wire rope | 6mm | ||
Volume of winding drum | 450m | ||
5. Mud pump | |||
Horizontal triplex mud pump | BW-200II | ||
Displacement | 200L/min | ||
Diameter of water inlet hose | 65mm | ||
Diameter of water outlet hose | 38mm | ||
6.Power supply | |||
Diesel engine | 24HP | ||
Electrical motor | Y160L-4,18.5kw | ||
7. Size of main machine | |||
Weight | 3000kg | ||
Dimension | 3980×1950×2750mm | ||
