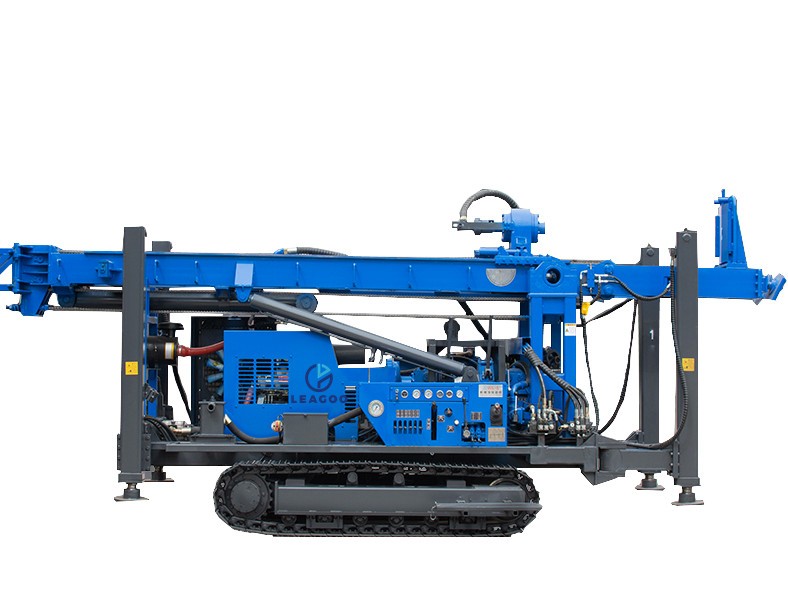

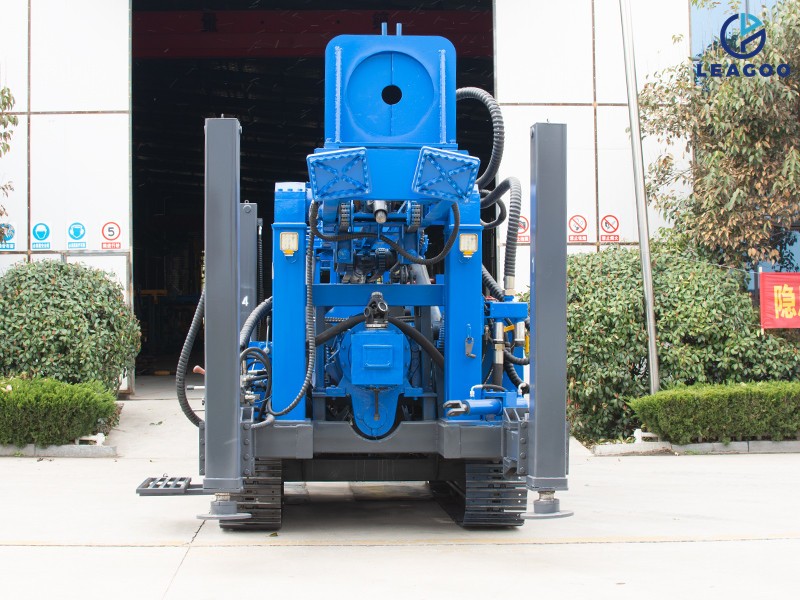

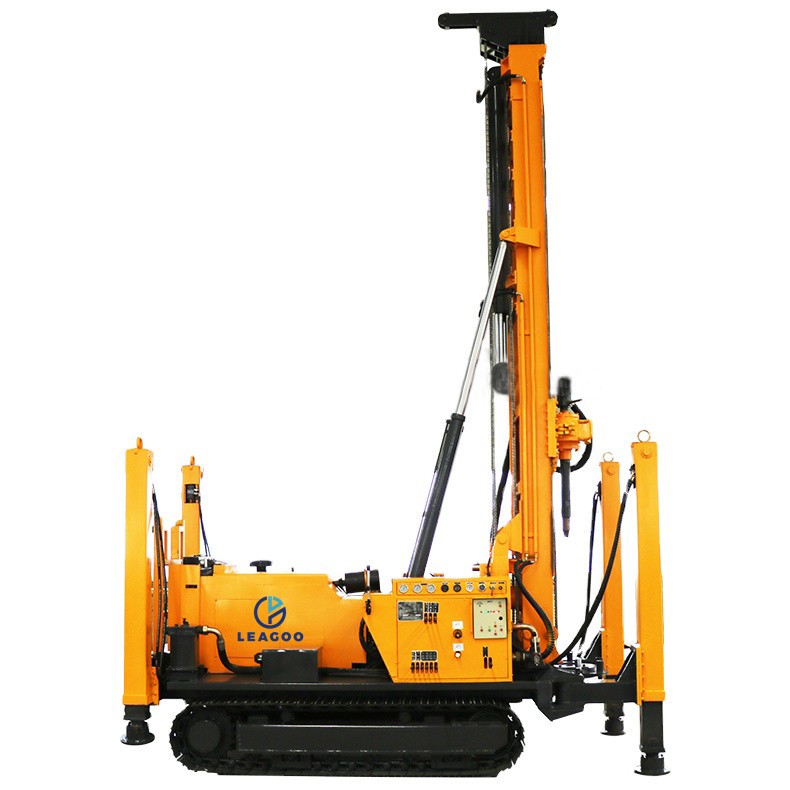

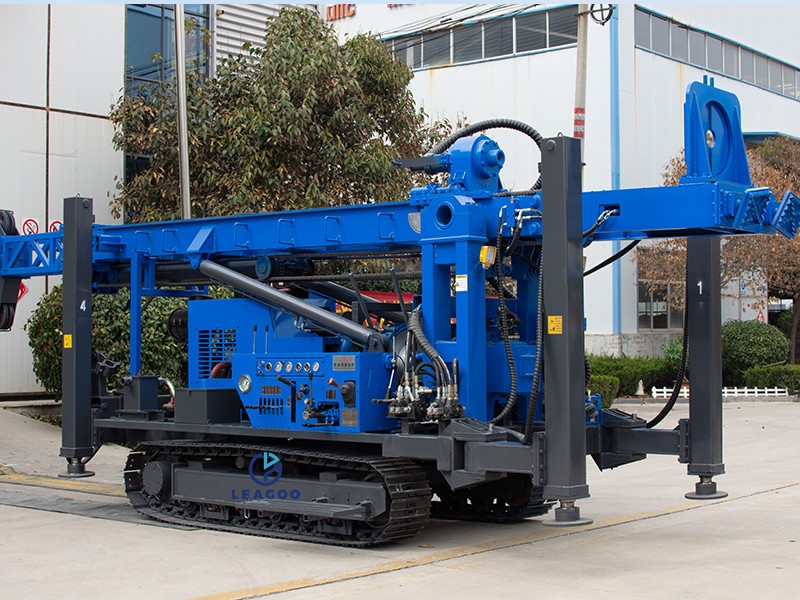

LDG-500 Multi-Fuctional Drilling Rig

1. Max depth 800m
2. Diameter 152mm-350mm
3. Mechanical top drive.
4. Working with mud pump and air compressor.
5. Drilling in soil, sand , gravel, soft and hard rocks.

EMAIL

I. Application

LDG-500 drilling rig is a mechanical top-drive drilling equipment that integrates water drilling and gas drilling, which solves the difficulty of drilling air-drilling hammers in soil layers. The problem of low mud drilling construction efficiency, the dual-purpose water and gas drilling rig is suitable for various formations, and the core drilling efficiency and geological exploration are efficient and energy saving.

II. Technicial Parameter


Drilling capacity

Drilling depth for water well

800m(152mm~305mm)

75mm Wireline coring N size

1200m

( Borehole (Drill bit) dia.

Ø75~Ø350mm

Drilling angle

75-90°

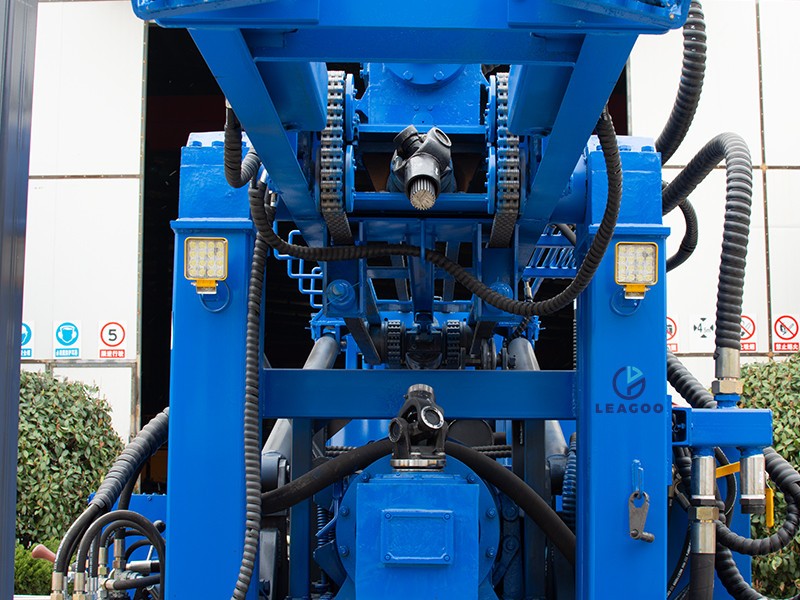

Drive head

Lifting capacity

240kN

Thrusting capacity

180kN

Rotary speed RPM

43-1080r/min

47,144 r/min

Max. Torque

16500N.m


Power Unit

Engine Model

YN48GBZ

Rated power/speed

92kW/ 2400r/min

Mechanical winch capacity

7.5Ton


Drill pipe

Drill pipe dia.

Ø50/ Ø60 / Ø76/ Ø89mm

 NQ/ HQ /PQ

Drill pipe length

3000mm

Mud pump

BW160/ BW200/ BW250


Air compressor

Air consumption

16~35m3/min

Air pressure

10.5~24.6bar


Crawler chassis

Walking speed

0~2 km/h

Climbing angle

Max. 25°~30°


Dimension

Transport

6300*2000*2650mm

Working

3800*2500*8500mm

Weight with steel crawler

11500kg
