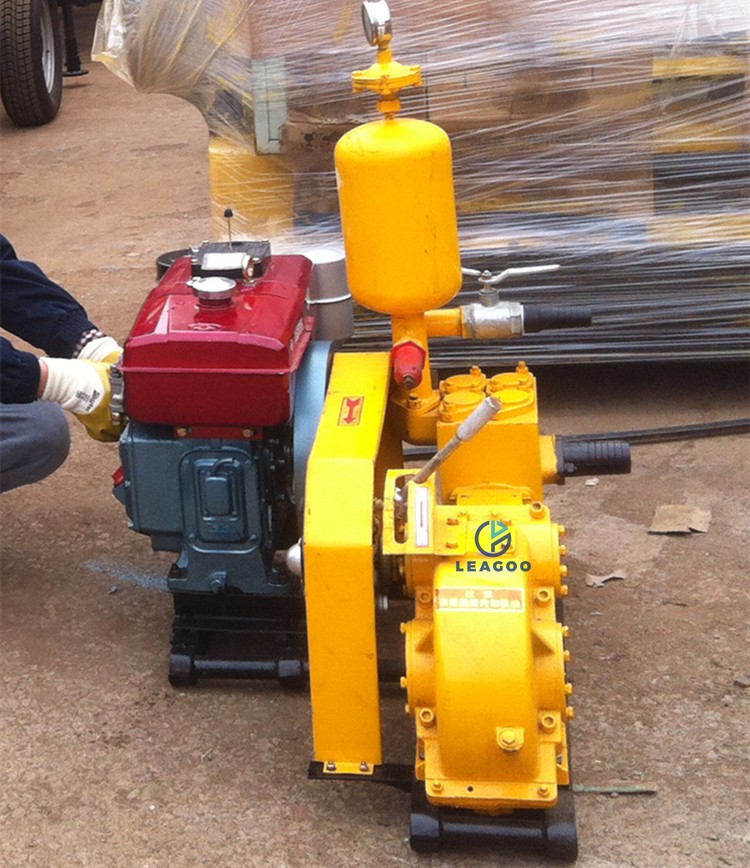

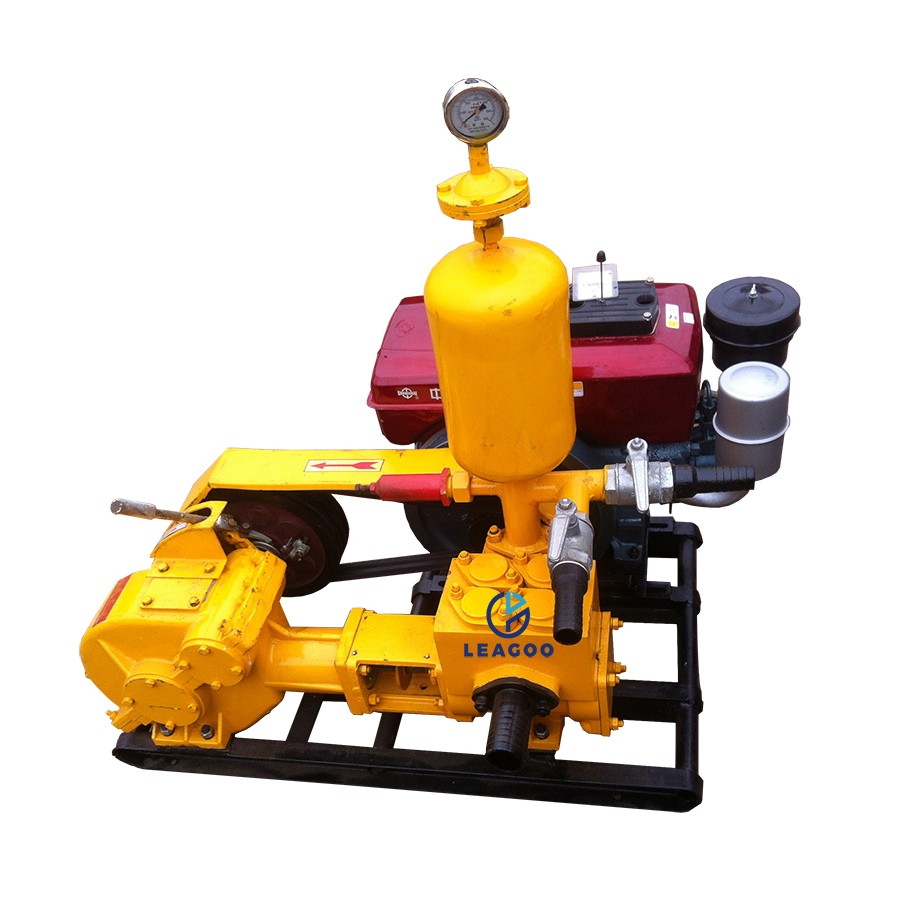

BW-160 Mud Pump

1. Flow: 160 L/min
2. Diesel engine: 8HP
3. Single cylinder

EMAIL

I. Application

Model BW-160 mud pump is a kind of portable mud pump. The pump is a horizontal single cylinder reciprocating double acting piston pump, has four flow and four kinds of pressure, flow and pressure

Range.

II. Technical Parameter

No.	Name	Technical Parameters
1	Model	BW-160
2	Number of cylinders	1
3	Cylinder diameter	95mm
4	Piston stroke	85mm
5	Frequency	165 time/min
6	Theoretical flow	160 L/min
7	Rated pressure	1.3Mpa
8	Volume efficiency	88%
9	Belt wheel speed	951rpm
10	Power	5.5kw/8HP
11	Inlet inside diameter	42mm
12	Outlet inside diameter	32mm
