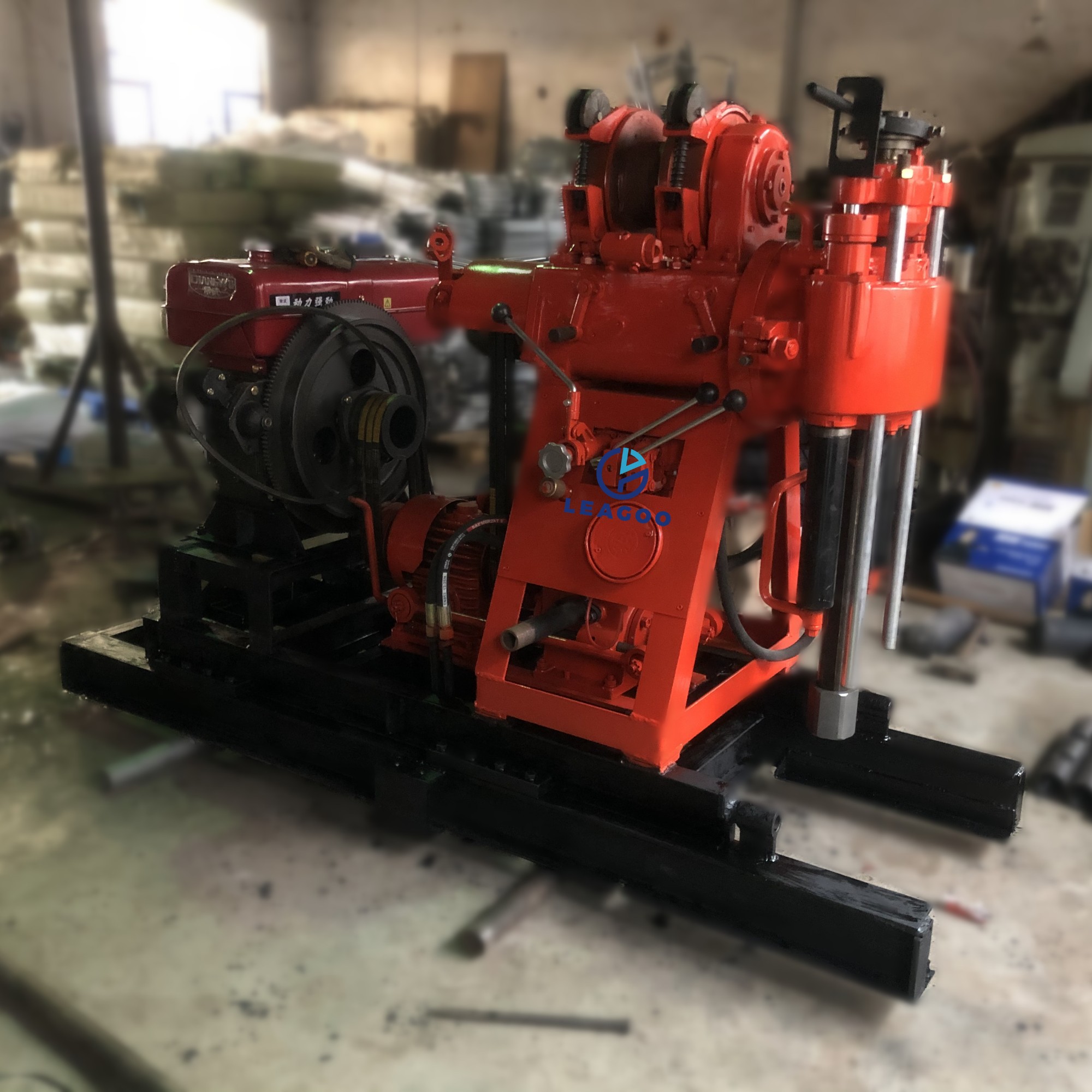

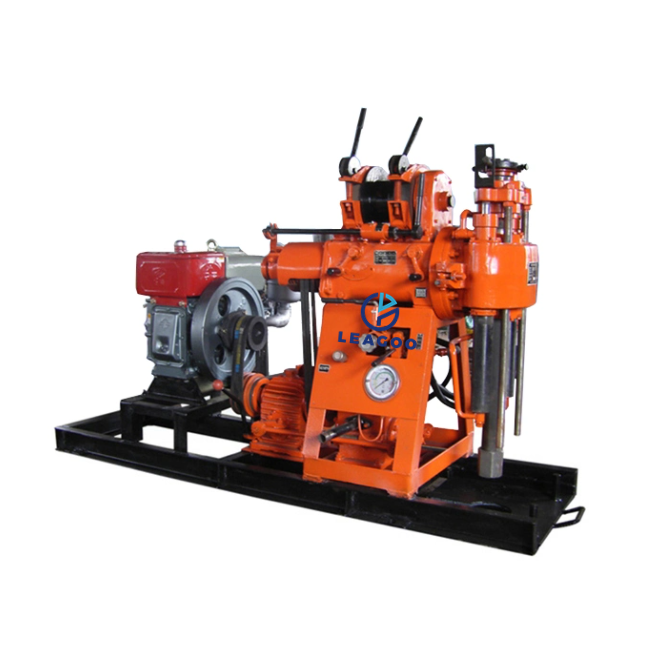

1. Max depth 100m
2. Diameter 75mm-300mm
3. Mud pump equipped on rig.
4. Two wheels trailer type.
5. Drilling in soil, sand , gravel, soft and hard rocks.
I. Application:
1. It is a high-speed drilling rig, suitable for geotechnical exploration, water well, soil sample projects.
2. Alloy bit, diamond bit and tricone bit can be selected for drilling according to the different bottom layers.
3. Diesel engine as power, no need to use electricity, convenient for outdoor drilling.
4. Two wheels trailer type.
II. Technical Parameter
1.Overall parameters | |
Drilling depth | 100m |
Maximum open hole caliber | 300mm |
End hole caliber | 75mm |

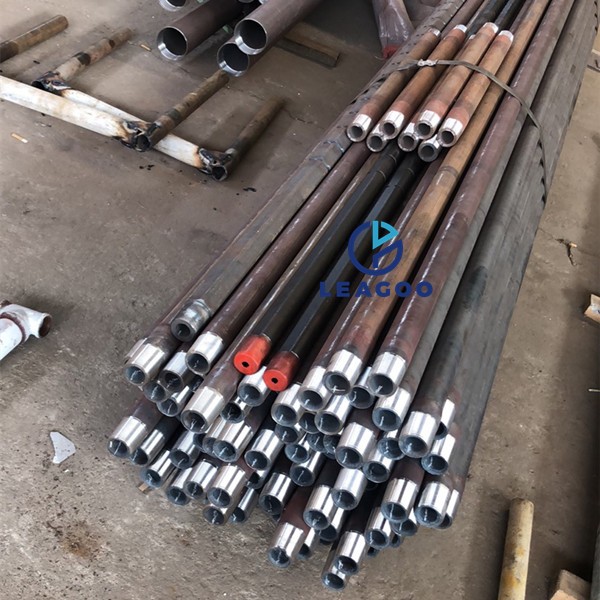

Diameter of drill rod | 50mm |
Drilling angle | 90~75 |
Weight(not include power) | 520kg |
Dimension | 2000mm*900mm*1400mm |
2. Vertical shaft | |
Rotating speed | 142, 285, 570r/min |
Feeding stroke | 450mm |
3.Hoist | |
Max. single line hoisting capacity | 1600Kg |
Diameter of wire rope | 11mm |
Volume of winding drum | 27m |
Hug floodgate caliber | 230mm |
Hug floodgate belt width | 50mm |
4.Mud pump | |
Type | Horizontal single urn twin-action |
Rate of flow | 95/77L/min |
MAX. pressure | 1.2MPa |
Working pressure | 0.7MPa |
Diameter of water inlet tube | 42mm |
Diameter of water outlet tube | 32mm |
5. Power | |
Diesel engine | 18HP, 2000r/min |
Electrical motor | 11KW, 1460r/min |
