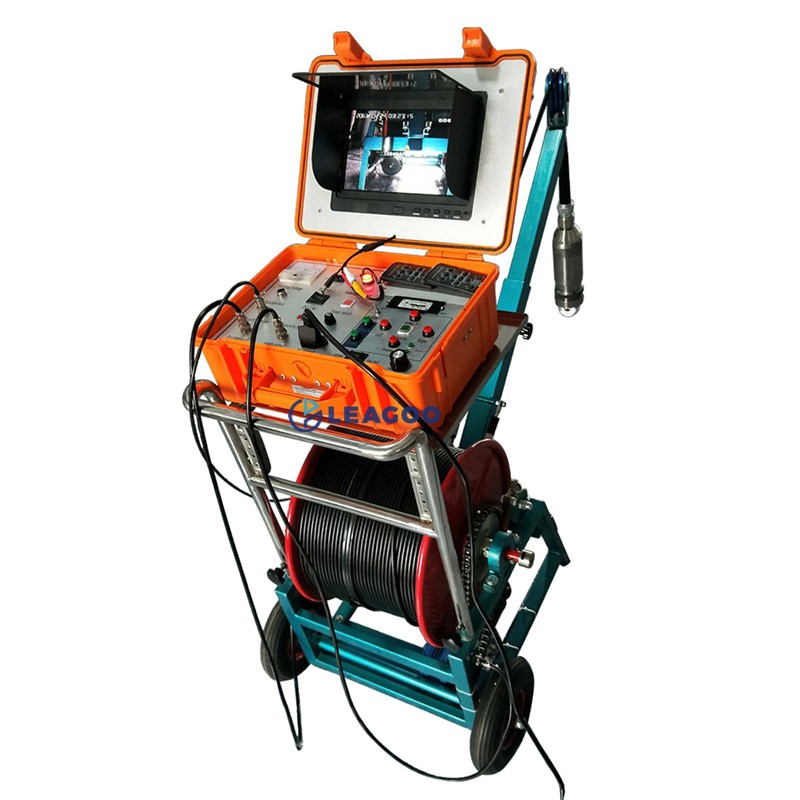

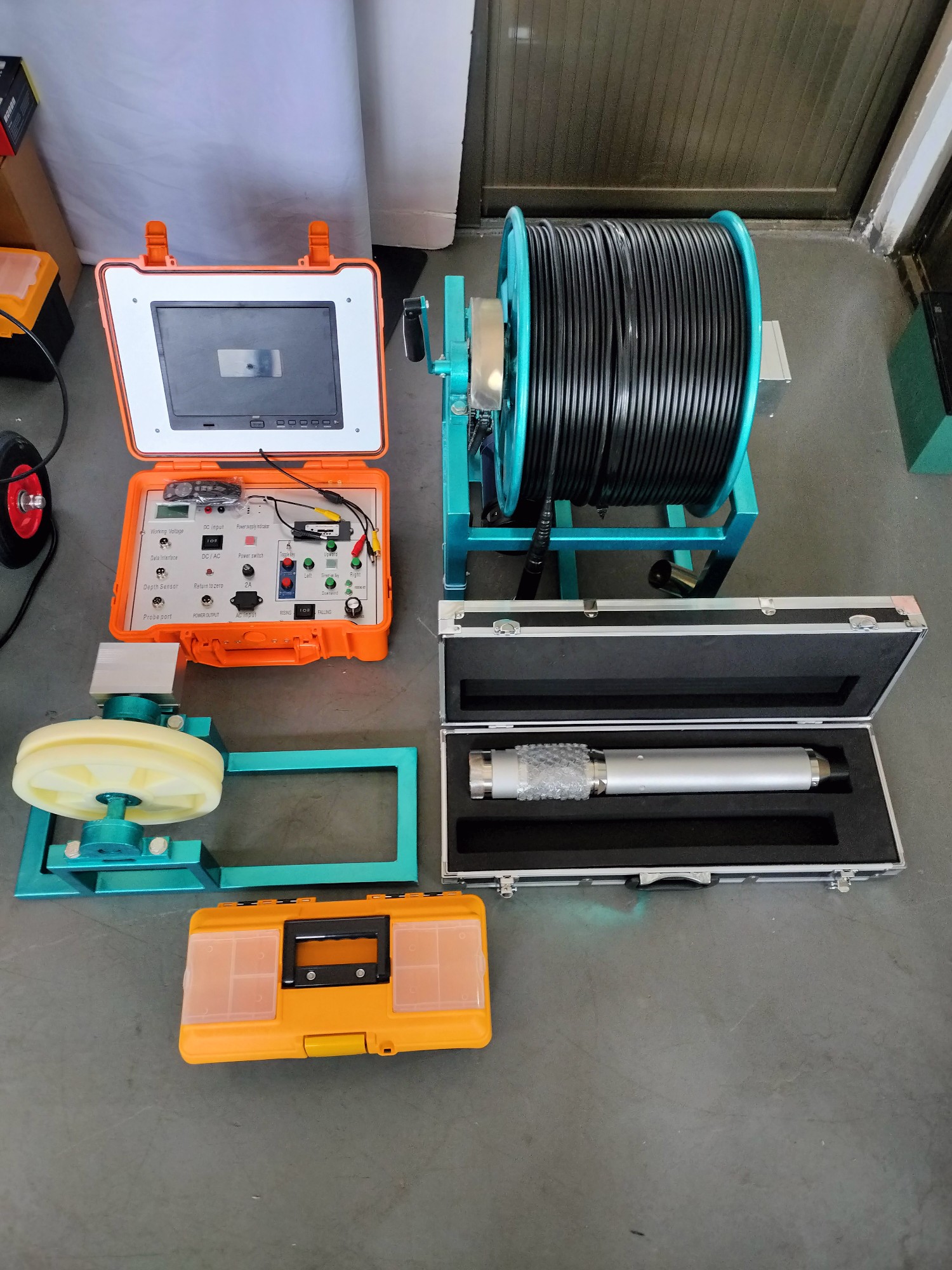

800m Portable Dual & PTZ Borehole Camera

I. Description

The borehole camera is applied for engineering hydrogeology, oil filed and geological prospecting industry. It observes various abnormalities and defects in boreholes for maintaining water well easily.

II. Technical Parameter

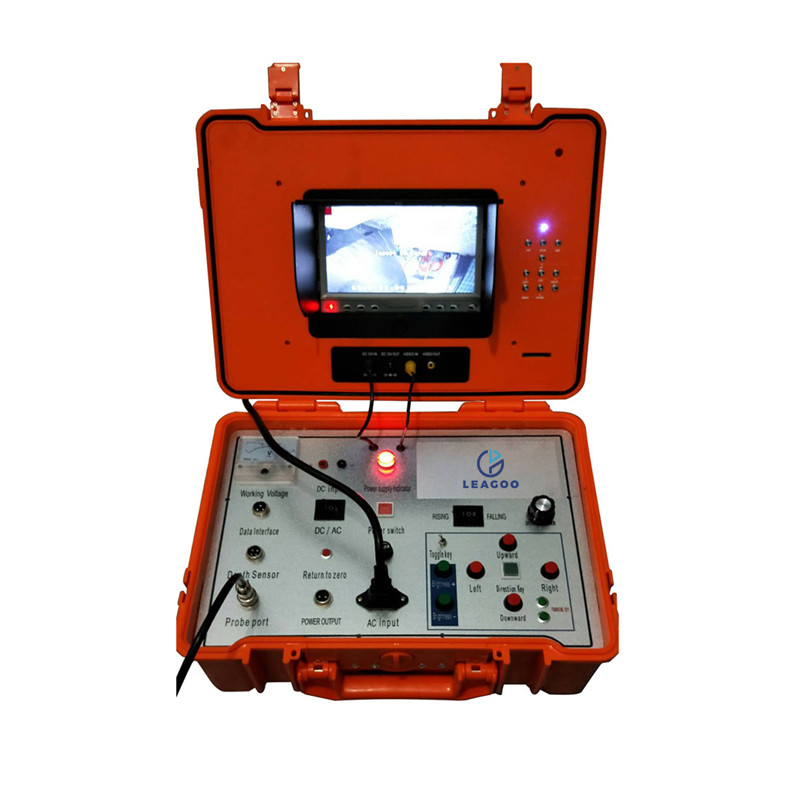

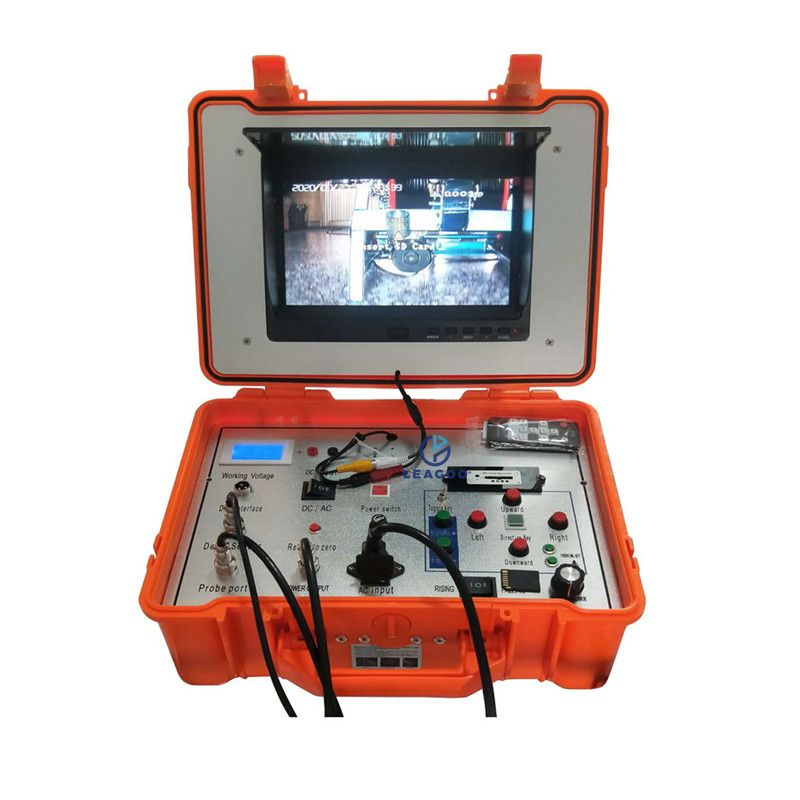

1. Control Box

* ABS Plastic control system

* Voltage input: 220V(12V is optional, max depth 600m)

* Depth interface: connect depth
sensor

* Probe interface: connect probe, transmit video and power

* Data interface: write well position number and calibrate depth by itself

* Video system: ultra-high definition SD card video recorder, 16G SD card video system, maximum support 32G

* Depth data: setting depth to Zero before working, depth real-time display on monitor .

* Monitor: 7”(10” &12'' for optional) high brightness LED monitor.

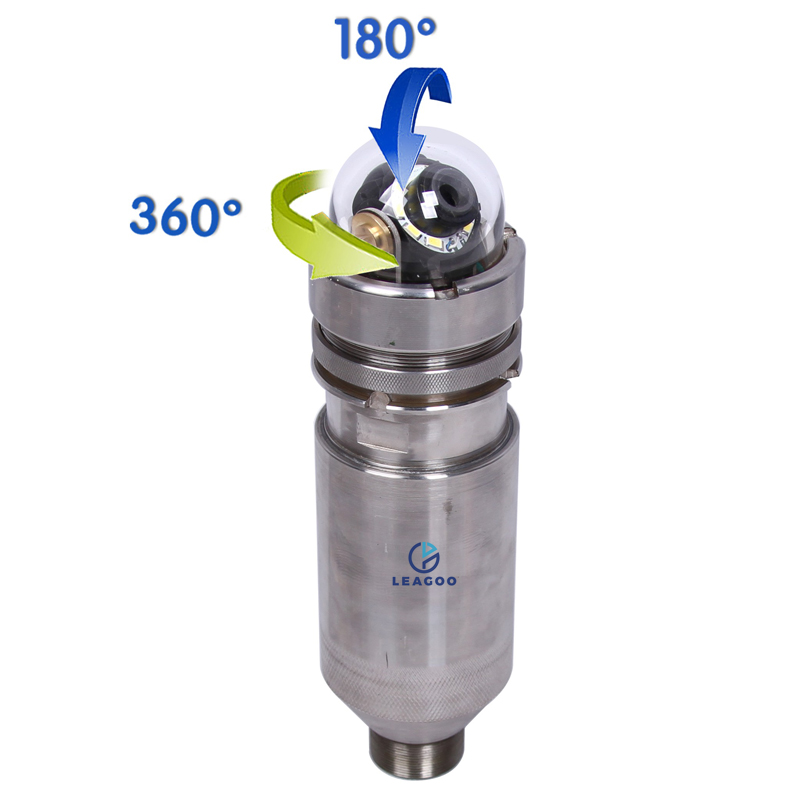

2. Camera Probe

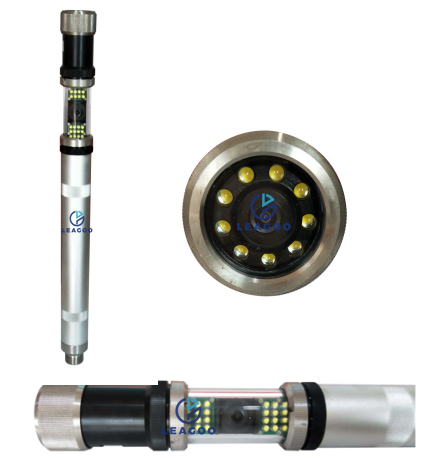

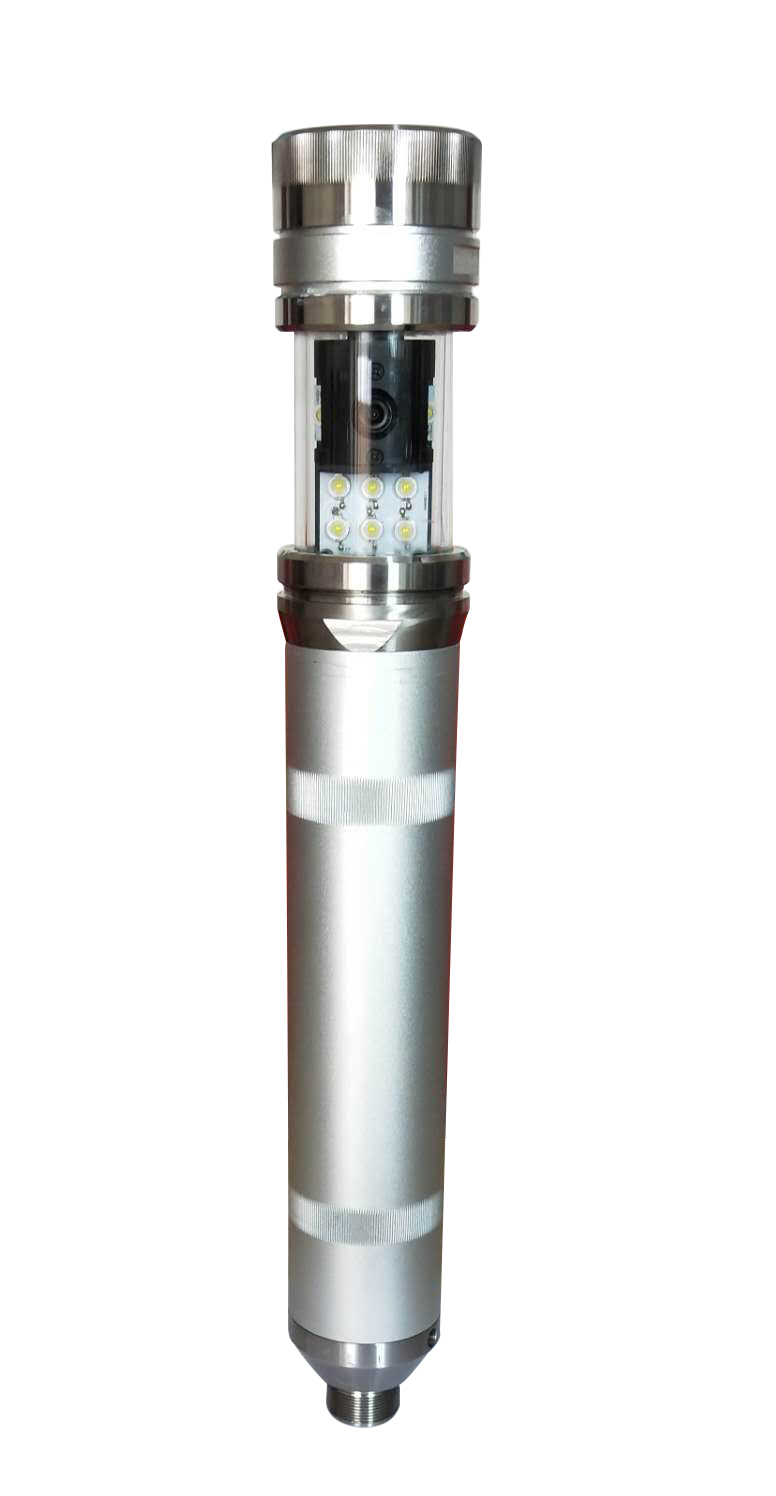

Single Camera Probe-φ90, φ75, φ42          Dual Camera Probe-φ75, φ50, φ41

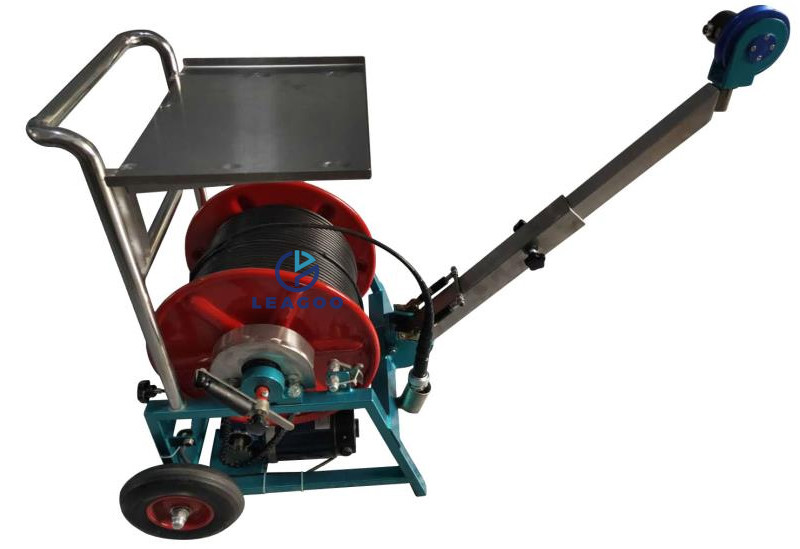

3.Electric and Manual Vertical Detachable Winch

*Winch: 220V or 12V Battery Power(0-600m)

* Manually control the speed of lifting up and down via control box.

* Main control tray:  stainless steel tray, removable and easy to transport

* Depth counting pulley: with depth sensor, can be used when connected with control box

*Pulley support rod: retractable and detachable

* Depth Counter: accurate to 0.005m

* Depth Zero: return depth to zero before logging to ensure accuracy.

* Motor: permanent magnet DC motor, self-locking

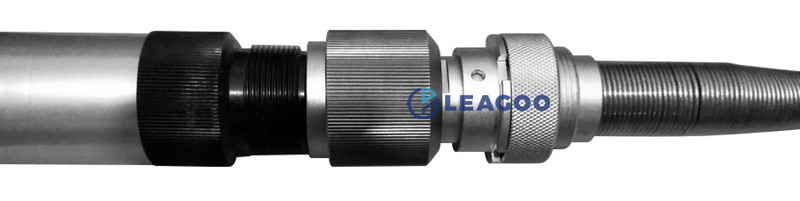

4. Probe Connector

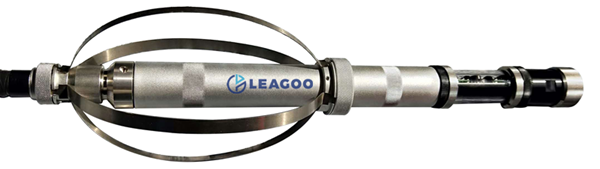

5. Centralizer

Stainless steel centralizer spring piece; Aluminum hard oxidation centralizer snap ring。

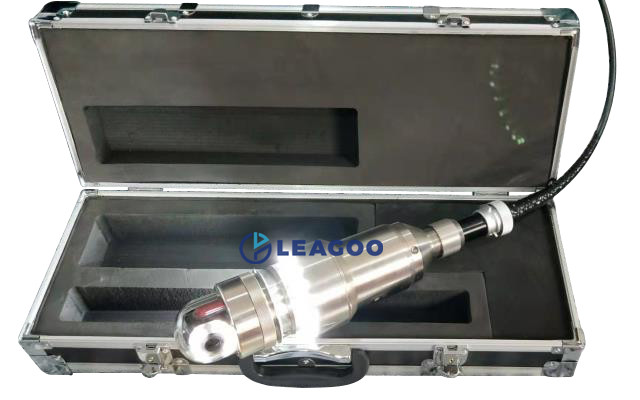

6. Tools Box

Including probe, connecting cable, centralizer, and other necessary accessories.
