1. Max depth 150m
2. Diameter 105mm-203mm
3. Hydraulic drive head.
4. Four wheels trailer type.
5. Drilling in soil, sand , gravel, soft and hard rocks.
I. Application

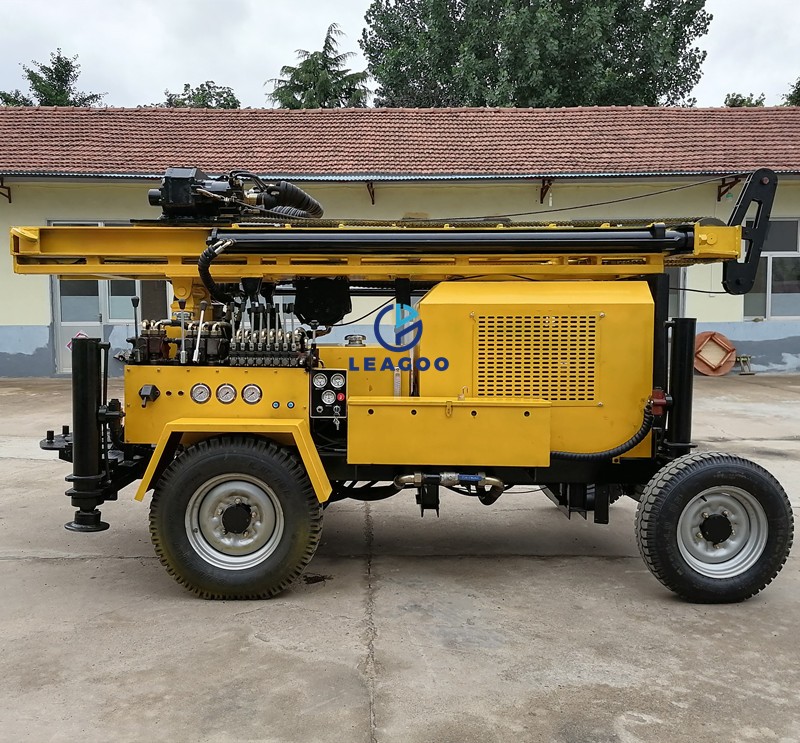

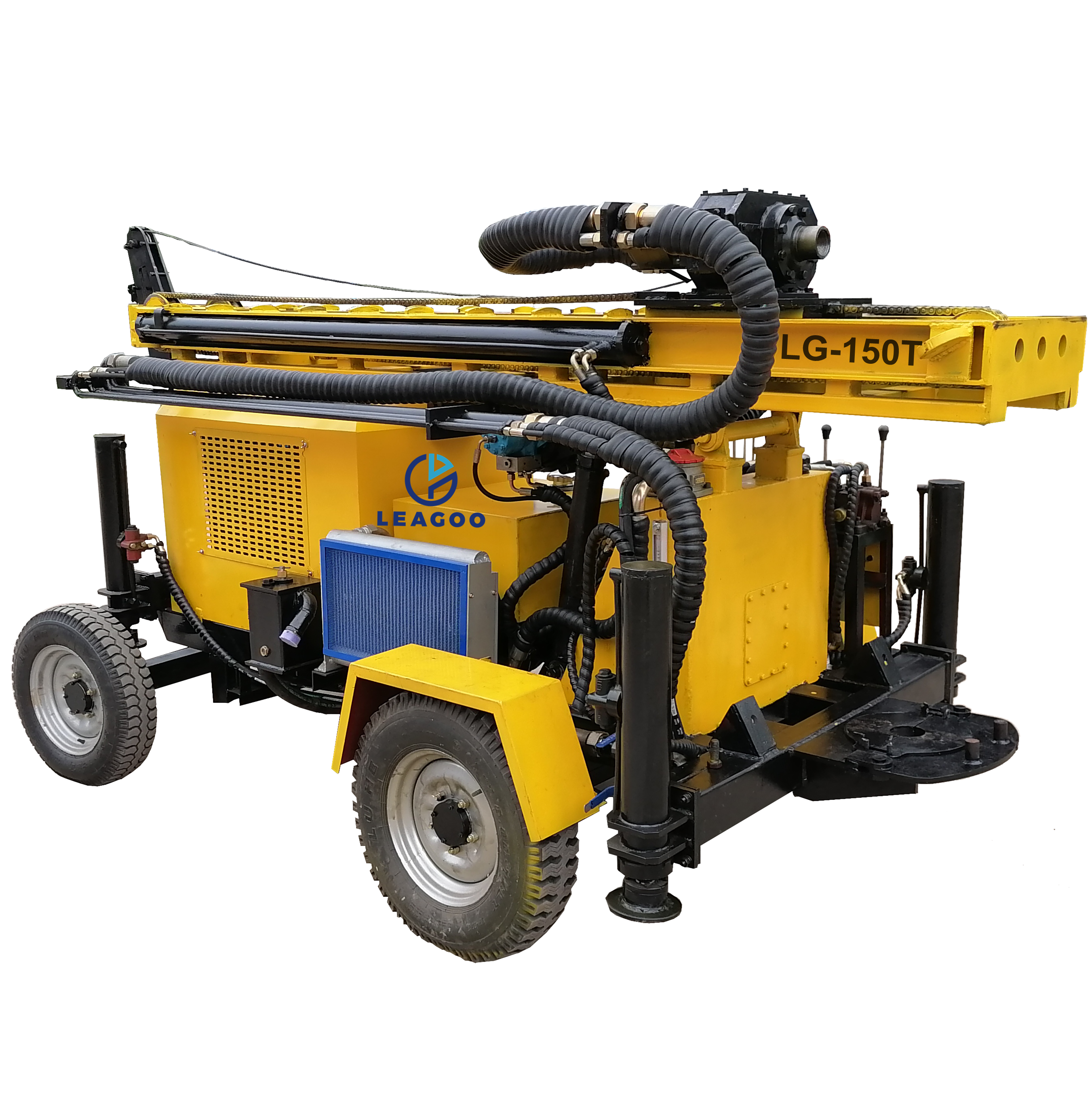

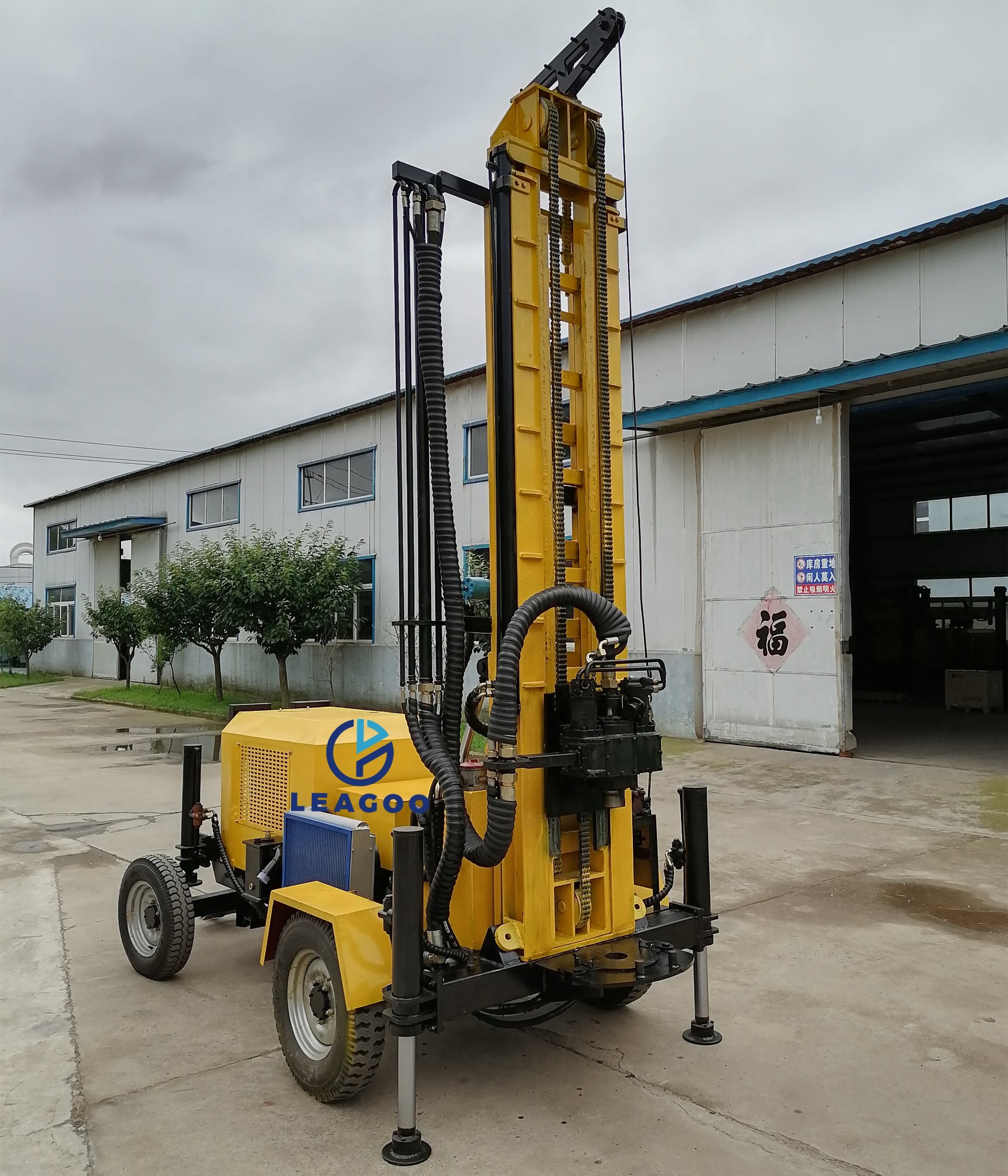

LGQ-150T is an DTH hammer drilling rig, could doing drilling work with mud pump and air compressor, mud pump for ground surface drilling, and air compressor for deeper layer drilling. It is widely used for drilling water wells, geothermal wells etc. Especially for water engineering in mountainous and rock areas.
II. Technicial Parameter
No. | Item | Specification |
1 | Drilling caliber | Φ105-203mm |
2 | Max. drilling depth | 150m |
3 | Diameter of drill pipe | Φ76 |
4 | Unit Length of drill pipe | 2000mm |
5 | Work pressure | 1.05-2.0 MPa |
6 | Gas consumption | 15~24 m³/min |
7 | Hammer | DHD350\360 |
8 | Apply to rock hardness | f=6-12 |
9 | Power | 44Kw/2200rpm |
10 | Grade ability | 25° |
11 | Walking speed | 0~2.0 Km/h |
12 | Ground clearance | 210mm |
13 | Leg cylinder stroke | 600 mm(1500mm) |
14 | System pressure | 20MPa |
15 | Propulsion | 5.0 ton |
16 | Lifting force | 7.8 ton |
17 | Speed of spindle | Fast 120 rpm ; Slow 85 rpm |
18 | Rotary torque | 2200N.m |
19 | Weight | 3200 Kg |
20 | Dimension | 3500×1770×2300mm |
